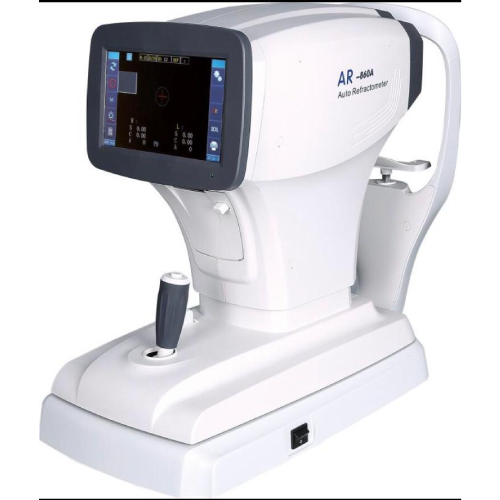

Justice AR-860-A / ARK-860 Auto Ref Keratometer
₹160,000.00
The Justice AR-860-A / ARK-860 Auto Refractometer Keratometer is an ophthalmic diagnostic instrument for automated refractive and corneal measurements. It features fast image processing, automatic reading, auto fogging, automatic PD measurement, selectable vertex distance, IOL mode, an 8-inch color TFT touch screen, thermal printer, and soft-lock system.
In Stock
Description
The Justice AR-860-A / ARK-860 Auto Ref Keratometer is designed for ophthalmology and optometry practices requiring automated refractive and keratometry measurements. The instrument uses an embedded microprocessor and fast image processing technology to support quick measurement and data acquisition.
The auto-reading function allows measurements to be taken automatically once satisfactory focus and alignment are achieved. The system also includes an auto fog chart to support refractive measurement and provides automatic pupil distance measurement.
A choice of multiple vertex distance settings allows measurements to be performed according to the required prescription parameters. The instrument also includes an IOL mode and a soft-lock system for convenient operation.
The 8-inch color TFT LCD touch screen provides clear display and direct control of functions. Measurement results can be printed using the built-in thermal line printer.
The AR-860-A / ARK-860 supports measurement of sphere, cylinder, axis, pupil distance, and minimum pupil size. The keratometry functions include corneal radius of curvature, corneal power, and corneal astigmatism measurements. Its compact design and automated functions make it suitable for ophthalmic clinics, optometry practices, and eye diagnostic environments.
Key Features
- Embedded microprocessor with fast image processing technology
- Automated refractive measurement
- Automatic reading after satisfactory focus and alignment
- 8-inch color TFT LCD touch screen
- Auto fog chart
- Automatic pupil distance measurement
- Selectable vertex distance settings
- IOL measurement mode
- Soft-lock system
- User-friendly operation
- Modern and compact instrument design
- Refractive and keratometry measurement functions
- Built-in thermal line printer
Technical Specifications
| Justice AR-860-A / ARK-860 Auto Ref Keratometer – Technical Specifications | |
|---|---|
| Refractometer Specifications | |
| Vertex Distance (VD) | 0.0 mm / 12.0 mm / 13.75 mm / 15 mm |
| Sphere Power (SPH) | -20.00D to +20.00D (VD = 12 mm, 0.12D or 0.25D steps) |
| Cylinder Power (CYL) | 0.00D to ±10.00D (0.12D or 0.25D steps) |
| Axis (AX) | 0° to 180° (1° step) |
| Pupil Distance (PD) | 10 mm to 85 mm |
| Minimum Pupil Size | 2.0 mm |
| Keratometer Specifications | |
| Radius of Curvature | 6.9 mm to 9.5 mm |
| Corneal Power | 32.00D to 52.00D |
| Corneal Astigmatism | 0.00D to 15.00D |
| General Specifications | |
| Display | 8-inch Color TFT LCD Touch Screen |
| Auto Fogging | Auto Fog Chart |
| IOL Mode | Available |
| PD Measurement | Automatic |
| Printer | Built-in Thermal Line Printer |
| Locking System | Soft Lock |
| Power Supply | AC 220V, 50Hz, 60VA |
| Unit Dimensions | 50 × 25 × 45 cm |
| Carton Size | 65 × 53 × 66 cm |
| Net Weight | 12.5 kg |
| Gross Weight | 20 kg |
